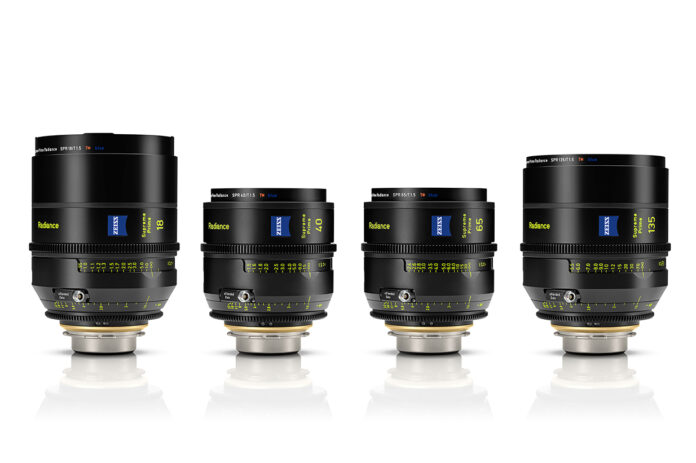

ZEISS has added four new lenses to the ZEISS Supreme Prime Radiance family launched in 2019. The 18 and 135 millimeter focal lengths add telephoto and wide-angle specialties to the seven focal lengths available to date.
The new 40 and 65 millimeter lenses enhance the standard range. With a maximum aperture of T1.5, all eleven focal lengths allow the finest nuances of light to be perceived, even in low-light conditions. The ZEISS T* blue coating was developed especially for this series to allow users to create this look across all focal lengths – without having to sacrifice contrast or light transmission.
Like the ZEISS Supreme Prime lenses, the ZEISS Supreme Prime Radiance lenses offer all the attributes of a state-of-the-art cine lens – with an image circle diameter of 46.3 millimeters, they cover current large-format cine sensors and are compatible with current camera models such as the Sony Venice, the ARRI Alexa LF and Mini LF, or the RED Monstro. Incorporating a uniform front diameter of 95 millimeters and consistently positioned focus and aperture rings, they feature smooth and reliable focusing, simplifying the task of changing lenses on set. The rugged lenses’ average weight is about 1,600 grams (3.5 lbs). The lenses are equipped with the ZEISS eXtended Data metadata technology launched in 2017.
Deliveries will start in Q3, 2021.
Technical Data
ZEISS Supreme Prime Radiance 18 mm T1.8
- Aperture: T1.5 to T22
- Close Focus*: 0.35 m | 14”
- Length**: 163 mm | 6.4”
- Front Diameter: 114 mm | 4.5”
- Weight: 2.27 kg | 5.00 lbs
- Horizontal Angle of View
- Full Frame ***: 88.4°
- Super 35 ****: 67.9°
ZEISS Supreme Prime Radiance 40 mm T1.5
- Aperture: T1.5 to T22
- Close Focus*: 0.42 m | 17”
- Length**: 121 mm | 4.8”
- Front Diameter: 95 mm | 3.7”
- Weight: 1.49 kg | 3.28 lbs
- Horizontal Angle of View
- Full Frame ***: 47.4°
- Super 35 ****: 33.8°
ZEISS Supreme Prime Radiance 65 mm T1.5
- Aperture: T1.5 to T22
- Close Focus*: 0.6 m | 2′
- Length**: 121 mm | 4.8”
- Front Diameter: 95 mm | 3.7”
- Weight: 1.63 kg | 3.59 lbs
- Horizontal Angle of View
- Full Frame ***: 30.5°
- Super 35 ****: 21.3°
ZEISS Supreme Prime Radiance 135 mm T1.5
- Aperture: T1.5 to T22
- Close Focus*: 1.4 m | 4’6”
- Length**: 146 mm | 5.7”
- Front Diameter: 114 mm | 4.5”
- Weight: 2.27 kg | 5.00 lbs
- Horizontal Angle of View
- Full Frame ***: 15.6°
- Super 35 ****: 10.9°
Remarks:
*) Minimum marked distance, measured from the image plane
**) Front to PL mount flange
***) Horizontal angle of view for a full-frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42“ x 0.94“)
****) Horizontal angle of view for an ANSI Super 35 Silent camera (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98“ x 0.74“)
